Deep Dive into Blender 5.1 Principled BSDF: Layer-Based Analysis and Optimization Strategies for PBR Textures (Focused on Cycles Rendering)
Overview
The Principled BSDF shader is a core node in Blender that enables efficient and intuitive creation of a wide range of materials. Based on the OpenPBR surface shading model, it provides compatibility with PBR shaders used in other software, allowing direct integration of textures created in tools like Substance Painter. Understanding and properly utilizing each layer of the Principled BSDF node in the Cycles rendering engine is essential for achieving realistic rendering results.
Core Concepts
1. Multi-Layer Structure
The Principled BSDF combines multiple layers into a single unified node. The base layers consist of:
- Metal
- Diffuse
- Subsurface
- Transmission
Above these sits the Glossy Coat layer, and at the top is the Sheen layer.
Light emission occurs beneath the Coat and Sheen layers.
Each layer is responsible for a specific material property, and by combining them, a wide range of material appearances can be achieved.
2. Key Input Parameters
- Base Color
Defines the base color for Diffuse, Subsurface, Metal, and Transmission layers. - Roughness
Controls micro-surface roughness for both specular reflection and transmission.- 0.0 → perfectly sharp reflections
- 1.0 → fully diffuse reflections
- Metallic
Blends between dielectric (non-metal) and metallic material models.- 0.0 → uses Diffuse/Transmission + Specular layers
- 1.0 → fully specular reflection tinted by Base Color
- IOR (Index of Refraction)
Controls how light bends and reflects.
Typical values range from:- 1.0 (air) to 4.0 (germanium)
- Default 1.5 is suitable for glass
- Alpha
Controls transparency.
Can be driven by the Alpha output of an Image Texture node. - Subsurface
Enables subsurface scattering (SSS), used for materials like skin, milk, or wax.
Simulates light scattering beneath the surface for a softer appearance. - Specular
Controls the intensity of the specular layer above diffuse and subsurface components.
3. Subsurface Scattering (SSS) Methods in Cycles
- Christensen-Burley
- Approximation of volumetric scattering
- Less accurate than Random Walk
- Often resolves noise faster in certain cases
- Random Walk
- Physically more accurate
- Best for thin or curved geometry
- Requires closed meshes
- Problematic with overlapping faces or holes
- Random Walk (Skin)
- Optimized specifically for skin rendering
- Radius is automatically driven by color textures
- Uses custom IOR to mix diffuse and specular transmission
- Preserves fine surface detail and produces more realistic skin results

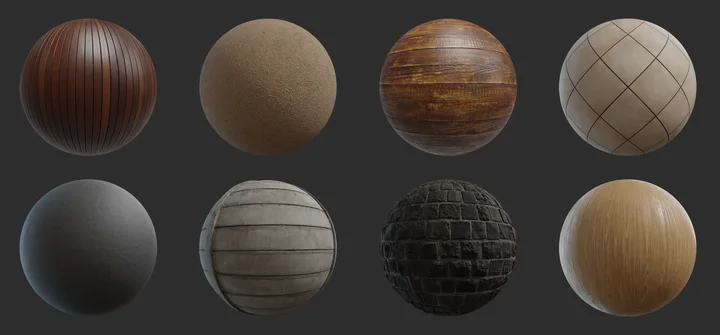

Practical Workflow
To apply PBR textures using the Principled BSDF node:
- Prepare a PBR texture set (Base Color, Roughness, Metallic, Normal, etc.) from tools like Substance Painter.
- Create a new material in Blender and add a Principled BSDF node.
- Add Image Texture nodes and load each texture map.
- Connect each texture to the corresponding input:
- Base Color → Base Color
- Roughness → Roughness
- Metallic → Metallic
- Set the Color Space of data maps (e.g., Metallic, Roughness, Normal) to Non-Color Data.
- Adjust parameters such as Subsurface, Specular, and Sheen as needed.
- Render using the Cycles engine with appropriate lighting.
Important Notes
- When using Alpha textures:
Set the material Blend Mode to Alpha Blend or Alpha Clip. - When using Normal maps:
Use a Normal Map node before connecting to the Principled BSDF Normal input.
Limitations and Issues
- Random Walk SSS only works properly with closed meshes.
Overlapping faces or holes will cause artifacts. - Christensen-Burley is less physically accurate than Random Walk.
- The Principled BSDF cannot perfectly represent all materials.
Complex optical effects may require additional node setups.
Conclusion
The Principled BSDF node is a powerful and efficient tool for PBR-based rendering in Blender. It allows artists to create a wide range of materials with a streamlined workflow, especially when working with textures from Substance Painter.
However, it is not a “complete solution” for every material.
For advanced realism, a deeper understanding of each layer—and when to go beyond the default setup—is still necessary.
